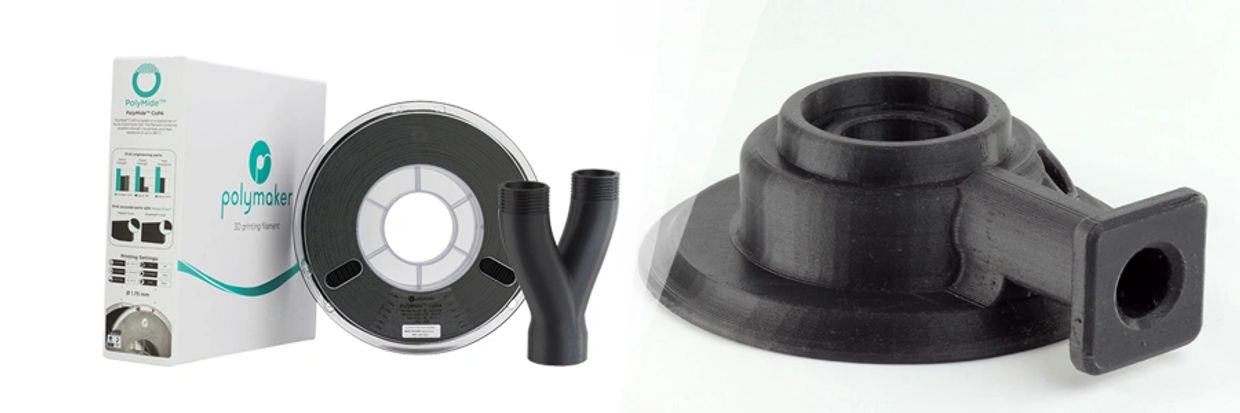

PolyMide CoPa
Industrial Quality at Your Fingertips
PRINT SETTINGS
Nozzle Temperature:
250˚C – 270˚C
Printing Speed:
30mm/s – 50mm/s
Bed Temperature:
25˚C – 50˚C
Bed Surface:
Glass with glue
Cooling Fan:
OFF
Based on 0.4 mm nozzle and Simplify 3D v.3.1. Printing conditions may vary with different printers and nozzle diameters
MECHANICAL PROPERTIES
Young’s Modulus:
2223 ± 199 Mpa
Tensile Strength:
66.2 ± 0.9 Mpa
Bending Strength:
97.0 ± 1.1 Mpa
Charpy Impact Strength:
9.6 ± 1.4 kJ/m2
THERMAL PROPERTIES
Glass Transition Temperature:
67˚C
Vicat Softening Temperature:
180˚C
Melting Temperature:
190˚C
NOTES
Drying Settings:
80˚C for 12h
Recommended Support Materials:
PolyDissolve™ S1
Other:
It is highly recommended to use the PolyBox™ when printing with PolyMide™ CoPA and to store it in the resealable bag.
To ensure a good heat resistance of your printed part it is recommended to anneal your PolyMide™ CoPA 3d printed model.
Annealing settings: 70˚C for 2h
When used extensively, PolyMide™ CoPA can be abrasive to brass nozzles. When using PolyMide™ CoPA, we recommend to switch to a wear resistant nozzle such as hardened steel nozzle.
